Heavy-duty monoblock surface pumps from proxys-PUMP, Prakash Gold Ind Pvt Ltd — built for powerful suction, high discharge and dependable day-to-day use across homes, farms and small industry.

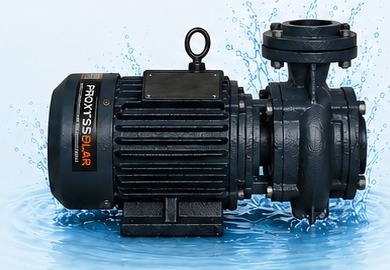

PG0110DC — 1 HP solar dc motor with 99,000 LPD discharge capacity and a 2 INCH delivery bore.

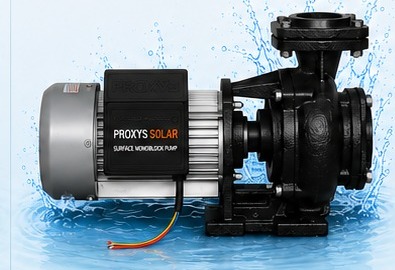

PG01210DC — 2 HP solar dc motor with 1,98,000 LPD discharge capacity.

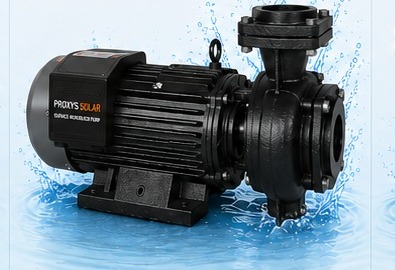

PG01310DC — 3 HP solar dc motor with 2,97,000 LPD discharge capacity.

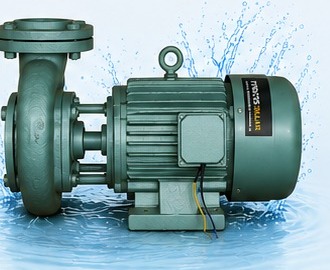

PG0510AC — 5 HP ac motor with 5,28,000 LPD discharge capacity and a 4 INCH delivery bore.
The proxys-PUMP PG Series is a range of surface monoblock pumps designed for straightforward, dependable water lifting — from household overhead tanks to field-edge irrigation and small workshop use. Each pump pairs a robust cast motor housing with a wide suction and delivery bore for strong, consistent flow.
1 HP to 5 HP, DC and AC motor options.
2" to 4" suction & delivery for higher flow.
Consistent suction head across the range.
Up to 5,28,000 LPD on the PG0510AC.
Every figure below is taken directly from the proxys-PUMP official specification sheet for the PG Series.
| Specification | PG0110DC | PG01210DC | PG01310DC | PG0510AC |
|---|---|---|---|---|
| Power | 1 HP | 2 HP | 3 HP | 5 HP |
| Voltage | 72 V | 110 V | 170 V | 270 V |
| Power (Watt) | 900 W | 1800 W | 3000 W | 4800 W |
| Suction Head | 7–8 MTR | 7–8 MTR | 7–8 MTR | 7–8 MTR |
| Shut Off | 25 MTR | 25 MTR | 25 MTR | 17 MTR |
| Discharge | 99,000 LPD | 1,98,000 LPD | 2,97,000 LPD | 5,28,000 LPD |
| Suction Size | 2 INCH | 2.5 INCH | 3 INCH | 4 INCH |
| Delivery Size | 2 INCH | 2.5 INCH | 3 INCH | 4 INCH |
Three DC models (PG0110DC, PG01210DC, PG01310DC) built for solar arrays, plus an AC model (PG0510AC) for grid-powered installations.
A single-piece cast motor-and-pump housing keeps alignment tight and reduces the leak points common in coupled setups.
Bore sizes scale from 2" up to 4" across the range, supporting higher discharge without excess strain on the motor.
From 99,000 LPD on the entry PG0110DC up to 5,28,000 LPD on the flagship PG0510AC.
proxys-PUMP surface pumps are manufactured by Prakash Gold Ind Pvt Ltd in Noida, Uttar Pradesh, and backed by the same on-ground team that runs PM-KUSUM awareness camps across the state.
Manufactured at our Noida facility.
Reach us by call or WhatsApp for guidance.
Assistance with subsidy scheme paperwork.
The same team runs our farmer camps.
Tell us your HP requirement, water source and application — our team will recommend the right PG Series model and share a quote.
Tell us what you need — our team will call you back.
